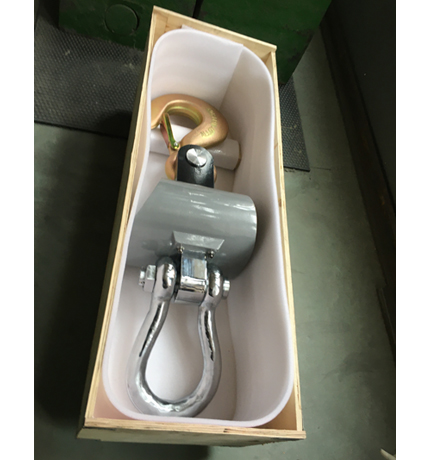

OCS-SZL Heavy type economic crane scale
Dimensions and Specifications:
MODEL | Cap.(kg) | Resolution(kg) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | H(mm) | N.W(kg) | G.W.(kg) |
OCS-SZL-30 | 30000 | 10 | 260 | 340 | 100 | 300 | 200 | 1055 | 104 | 115 |
Features：
◆ Enclosure:
Seamless steel pipe extruded for maximum protection.
◆ Multi-weighing units:
Kg, lb are selectable, kg are default unit.
◆ Multi-function operation:
Tare, Zero, Auto zero tracking, Total, Hold, Overload warning and record, operated through infrared remote controller.
◆ User-friendly design:
Large red 5 digit LED display (digit height 45mm), Battery Operated with low battery indication, Auto turn off , power-saving function.
◆ Gravity regulation:
The acceleration of gravity can be regulated through remote controller according to different places value.
◆ Multi options:
RS-232-continuous or on demand data output, user-selectable.
Wireless big screen 3″, 5″, wireless indicator 180, 280, 380, 580 can match with the scale, user-selectable.
Main technical data：
Accuracy Standard | According to OIML class III |
Display | 45mm (1.8″) 5digits LED |
Filtering | Low, Medium or High selectable |
Units | Kilograms or Pounds selectable |
Resulation | 2000 to 3000 divisions standard(up to 15,000 available) |
Zero Range | 4% F.S. |
Tare Range | 100% F.S. |
Overload Indication | 100% F.S. + 9e |
Max. Safety Load | 125% F.S. |
Ultimate Load | 400% F.S. |
Battery Type | Fully sealed Lead-Acid battery, 6V/7Ah |
Battery Life | ≥100 hours |
Adapter | DC 9V/1000mA |
Operating Humidity | ≤85% RH under 20℃ |
Remote Controller Distance | Max. 15m |
Battery of Remote Controller | 7# battery, 1.5Vⅹ2 |
Acceleration of Gravity | Can be regulated, the default value is 9.793 |
