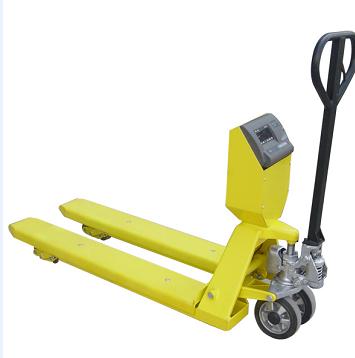

Product Name: pallet scale

Whe core components of the hydraulic cylinder warranty for one year (the quality of new ones), wheels, frame and other wear parts are not within the scope of the warranty (all accessories priced sales after 1 year), lifetime supply of maintenance services.
Packing: Our all products wholesale distributor for the convenience of purchasing all neutral packing, OEM needs need to contact customer service!

Installation, commissioning instructions and precautions:
(1) Installation Handle:
a. The same with the whole number of the handle mounted on the handle base
b. the chain through the hole in the middle of the handle holder and the pin
c. At this time tilting the handle should swing freely
(2) to adjust the drain swing lever position:
a. The lower end of the chain eyebolts inserted pendulum recess
b. Tilt the handle to make the forks rise to the highest position
c. Pull the control handle on the handle, you can make the fork down to the lowest position
d. If you can not put down the fork or rise, according to the clockwise or counterclockwise to adjust the pendulum nut
(3) use (load check):
a. After the handle is installed, the truck on a flat concrete floor tilt the fork handle rose to the highest position, and then pull the control handle, control experts fork steady decline to the lowest position
b. The control handle is placed in neutral, tilt the handle, then the fork should not rise
c. After the above checks and adjustments can be carried out using a truck
(4) Note:
a. After the handle is installed, we shall travel back and forth the whole fork lift 2-3 times, check whether the fork handle increased neutral phenomenon, whether steady decline, if anomalies previously described method can be adjusted
b. Any time not to your hands and feet below vans
c. can not be inclined floors or ramps lifting weights
d. lifting heavy weights should be placed in the center of the fork, non-partial load
e When the ambient humidity at -5 -. + 20 ℃, please use synthetic spindle oil, add the oil must be clean, so as not to affect the normal operation of the hydraulic systemarranty Description:
